Code: CANVAS

Walrus Audio Canvas Tuner

Pre-order available

$249.00 incl GST

Pre-order available

Payment Options: Master card, Visa, American Express and PayPal logo

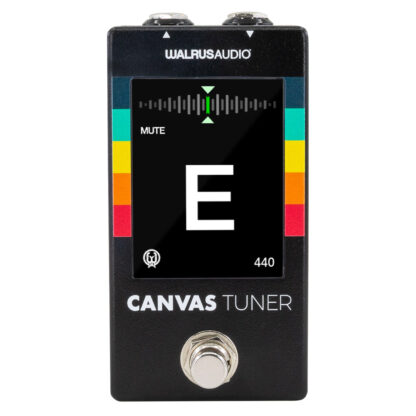

WALRUS AUDIO CANVAS TUNER
Arguably the most important pedal on your board, the Canvas Tuner ensures that your instrument is ready to sound its best with the perfect meld of versatility and precision. Packaged in the same tough-as-nails, tour-ready enclosure as all Walrus pedals, the Tuner features a bright 2.8” TFT LCD display that can be viewed under just about any stage lighting conditions, multiple screen orientations, ±0.1 cent accuracy, buffered or true bypass options and more. The Canvas Tuner ensures that you have the most accurate brush to paint your sonic picture.

FEATURES

  • Rich graphics LCD display in full colour.
  • Accuracy to +/- 0.1 cent
  • Offers both Needle and Strobe tuning modes.

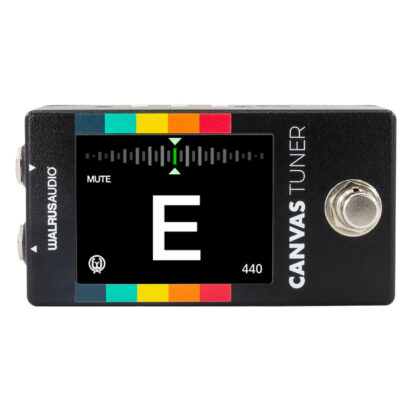

  • Display orientation can rotate 90, 180 and 270 degrees for limitless pedalboard placement options.
  • High output backlight viewable even in bright environments.
  • User-adjustable backlight brightness.
  • Four different bypass modes including true bypass and buffered passthrough for maintaining high signal integrity.
  • TuneAssist feature allowing for faster tuning from one string to the next.
  • Offers tuning preset, capo tunings, and selectable reference pitch.
  • User-selectable colour schemes to personalise the look of the display.
  • Multiple standby screen options including a user uploadable photo screensaver.

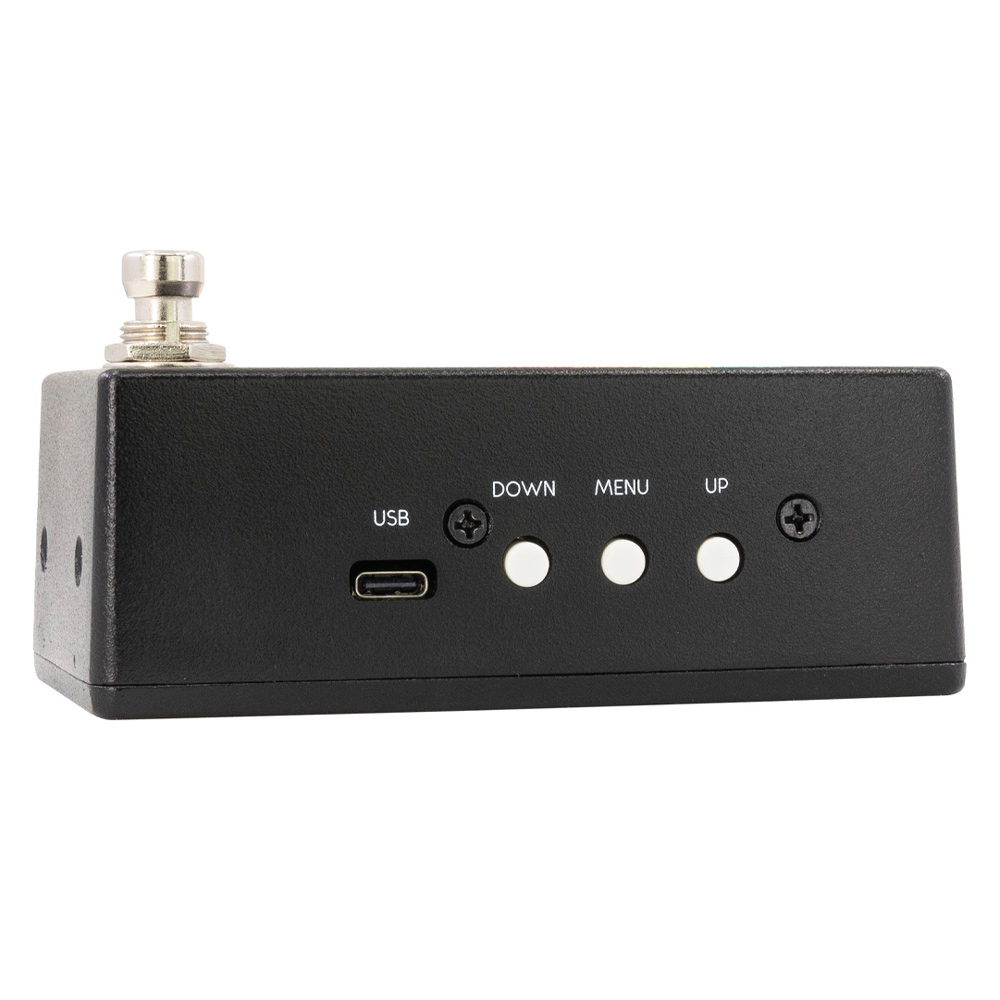

  • Updatable via USB C
  • Power requirements: 9V, 300mA minimum.

Uncompromising Accuracy
Precise and accurate tuning you expect with ±0.1 cent accuracy and multiple tuning presets. Tune with confidence, allowing your music to shine with clarity.

A World of Sound at Your Fingertips
With a flat frequency range spanning from 20Hz to 20KHz, the Walrus Audio Tuner is ready to handle tuning for low bass notes to high-strung acoustics. Even bassists needing that low B rumble can tune with confidence.

See the Music Come to Life
The 2.8” TFT LCD display is your window to pitch-perfection. Its crystal-clear quality ensures your tuning is always on point, even under the blazing stage lights or glaring sunlight.

Tailored to Your Preferences
Tailor your tuning experience to your liking with multiple screen orientation options and selectable Strobe or Needle tuning modes. Your preferences, your performance.

Your Aesthetic, Your Way
Match your style with ease. The Walrus Audio Tuner comes with eight colour themes and multiple screen savers including a custom picture mode* allowing you to personalise your tuner to fit your unique aesthetic. *Photos can be uploaded to the tuner via walrusaudio.io.

Tune Faster with Tune Assist
Let Tune Assist guide you swiftly and accurately through your tuning process. Quick and easy tuning has never been so effortless. With Tune Assist, once your note stays in tune longer than a pre-determined threshold, a border outlining the display will flash letting you know that you are in tune and can move to the next string.

Versatile Bypass Options
Enjoy ultimate flexibility with buffered bypass which routes your audio through our clean, low-noise, high headroom audio buffer with a Total Harmonic Distortion ratio of .001%.  This buffer offers a high input impedance of 1M Ohms and low output impedance of 400 Ohms to maintain the highest level of single integrity. Other available bypass modes include relay bypass, monitor mode, and pass-thru.

Customise Your Reference Pitch
Adjust the reference pitch from 390Hz to 490Hz to suit your musical needs. Precision tuning for any style of music.

Stay Current with Firmware Updates
Keep your tuner up to date with firmware updates via www.walrusaudio.io. Experience continuous improvement and new features as they become available.

Frequency Response: 20Hz To 20kHz

Tuning Accuracy: ±0.1 cent

THD:  0.001% @ 20Hz -20dBu

0.001% @ 1kHz -20dBu

Noise Floor: -112dBu

Signal To Noise Ratio: 98dB @ 1kHz

Input Impedance: ~1M Ohms

Output Impedance:  ~400 Ohms

Power Requirement: 9VDC, 300mA

Bypass options:

  • True bypass via a small signal relay
  • Buffered bypass employing a high quality op amp based buffer

Size Including Stomp/Jacks:

Height: 2.21” / 56.2mm

Width: 2.42” / 61.6mm

Depth: 4.55” / 115.7mm

Walrus audio products are covered by a limited lifetime manufacturer warranty.

Although we are not authorised to determine if any repair is covered under warranty, if the item was purchased through World of Music, then we are often the best people to facilitate the claim for you and will do so as timely as possible. Warranty does not apply to cosmetic damage or faults that are a result of user neglect. Although your mate is really handy with a soldering iron, any product modification or home repair will also result in a void warranty.

Quite often, something perceived as a fault is as simple as a faulty cable or power issue so we always suggest checking over Frequently Asked Questions on the manufacturer website first. It can be a helpful approach to getting to the bottom of a problem and save you a lot of time in getting your gear back up and running!

This item ships via courier; fully insured for your peace of mind. Orders require a signature on delivery and we suggest using an address where someone will be present for the speediest delivery time. For delivery attempts with no one present to sign, your order will be taken to the courier depot and a card will be left for you to organise redelivery.



Product Description

WALRUS AUDIO CANVAS TUNER
Arguably the most important pedal on your board, the Canvas Tuner ensures that your instrument is ready to sound its best with the perfect meld of versatility and precision. Packaged in the same tough-as-nails, tour-ready enclosure as all Walrus pedals, the Tuner features a bright 2.8” TFT LCD display that can be viewed under just about any stage lighting conditions, multiple screen orientations, ±0.1 cent accuracy, buffered or true bypass options and more. The Canvas Tuner ensures that you have the most accurate brush to paint your sonic picture.

FEATURES

  • Rich graphics LCD display in full colour.
  • Accuracy to +/- 0.1 cent
  • Offers both Needle and Strobe tuning modes.
  • Display orientation can rotate 90, 180 and 270 degrees for limitless pedalboard placement options.
  • High output backlight viewable even in bright environments.
  • User-adjustable backlight brightness.
  • Four different bypass modes including true bypass and buffered passthrough for maintaining high signal integrity.
  • TuneAssist feature allowing for faster tuning from one string to the next.
  • Offers tuning preset, capo tunings, and selectable reference pitch.
  • User-selectable colour schemes to personalise the look of the display.
  • Multiple standby screen options including a user uploadable photo screensaver.
  • Updatable via USB C
  • Power requirements: 9V, 300mA minimum.

Uncompromising Accuracy
Precise and accurate tuning you expect with ±0.1 cent accuracy and multiple tuning presets. Tune with confidence, allowing your music to shine with clarity.

A World of Sound at Your Fingertips
With a flat frequency range spanning from 20Hz to 20KHz, the Walrus Audio Tuner is ready to handle tuning for low bass notes to high-strung acoustics. Even bassists needing that low B rumble can tune with confidence.

See the Music Come to Life
The 2.8” TFT LCD display is your window to pitch-perfection. Its crystal-clear quality ensures your tuning is always on point, even under the blazing stage lights or glaring sunlight.

Tailored to Your Preferences
Tailor your tuning experience to your liking with multiple screen orientation options and selectable Strobe or Needle tuning modes. Your preferences, your performance.

Your Aesthetic, Your Way
Match your style with ease. The Walrus Audio Tuner comes with eight colour themes and multiple screen savers including a custom picture mode* allowing you to personalise your tuner to fit your unique aesthetic. *Photos can be uploaded to the tuner via walrusaudio.io.

Tune Faster with Tune Assist
Let Tune Assist guide you swiftly and accurately through your tuning process. Quick and easy tuning has never been so effortless. With Tune Assist, once your note stays in tune longer than a pre-determined threshold, a border outlining the display will flash letting you know that you are in tune and can move to the next string.

Versatile Bypass Options
Enjoy ultimate flexibility with buffered bypass which routes your audio through our clean, low-noise, high headroom audio buffer with a Total Harmonic Distortion ratio of .001%.  This buffer offers a high input impedance of 1M Ohms and low output impedance of 400 Ohms to maintain the highest level of single integrity. Other available bypass modes include relay bypass, monitor mode, and pass-thru.

Customise Your Reference Pitch
Adjust the reference pitch from 390Hz to 490Hz to suit your musical needs. Precision tuning for any style of music.

Stay Current with Firmware Updates
Keep your tuner up to date with firmware updates via www.walrusaudio.io. Experience continuous improvement and new features as they become available.

Specifications

Frequency Response: 20Hz To 20kHz

Tuning Accuracy: ±0.1 cent

THD:  0.001% @ 20Hz -20dBu

0.001% @ 1kHz -20dBu

Noise Floor: -112dBu

Signal To Noise Ratio: 98dB @ 1kHz

Input Impedance: ~1M Ohms

Output Impedance:  ~400 Ohms

Power Requirement: 9VDC, 300mA

Bypass options:

  • True bypass via a small signal relay
  • Buffered bypass employing a high quality op amp based buffer

Size Including Stomp/Jacks:

Height: 2.21” / 56.2mm

Width: 2.42” / 61.6mm

Depth: 4.55” / 115.7mm
