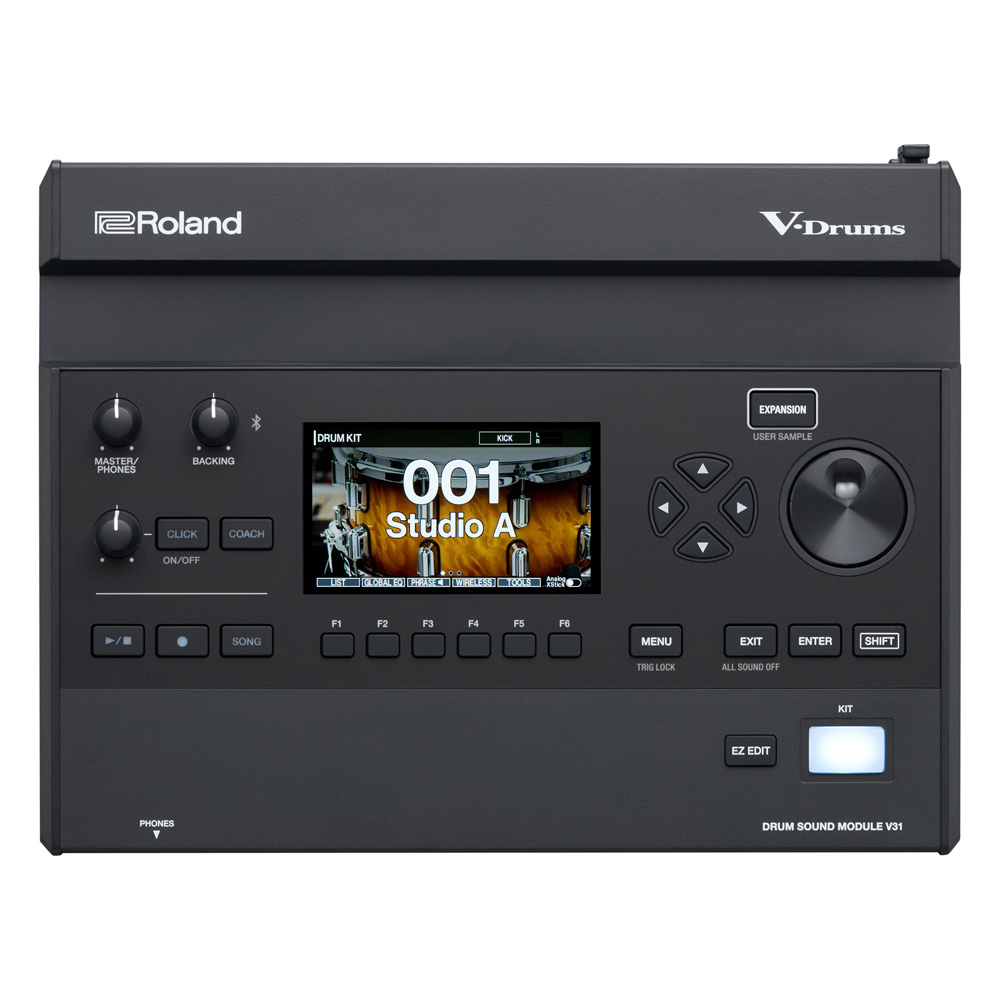

Roland V31 Drum Sound Module

Flagship Sound, Streamlined Design

The V31 sound module is the core component of the V-Drums 3 Series, delivering the power and expression of Roland’s flagship V71 engine in a compact, accessible format. It combines next-generation response and multi-layered drum and cymbal instruments into a straightforward interface, giving drummers a premium sound experience without the bulk or complexity. And with onboard practice tools, wireless connectivity, and smartphone app integration, you can practice smarter, perform with confidence, and grow your sound options with an ever-expanding range of V-Drums expansion content on Roland Cloud.

• Expandable V-Drums sound module powered by the same advanced drum engine as the top-tier V71
• Part of a unified ecosystem with the V71 and V51, offering full cross-compatibility with premium V-Drums expansion content on Roland Cloud
• Multi-sampled sound library created in collaboration with Drum Workshop (DW)
• DW Soundworks software instrument for a seamless transition to computer-based playing (included with Roland Cloud Ultimate membership)
• Wirelessly download V-Drums Instrument Expansions and Kit Packs with the Roland Cloud Connect mobile app
• Six-month Roland Cloud Ultimate membership included
• Large colour display, intuitive user interface, and built-in wireless adapter
• EZ Edit controls for fast changes to tuning, muffling, and instrument types
• Deep studio-grade processing tools, including EQs, compressors, reverbs, ambience effects, and more
• Companion V31 Editor software (macOS/Windows) and V-Drums Play app (iOS/Android)
• Add your own sounds with sample import support
• Dedicated pad input to upgrade your kit with an advanced Roland digital snare, ride, or hi-hat pad
• Multi-pin trigger cable harness and two ¼-inch analog trigger inputs
• Analog mix input for a music playback device or Roland percussion pad
• Integrated coach mode with Phrase Trainer, Stroke Monitor, and other advanced tools
• Includes Drum Pass, an exclusive Roland bundle of 100 free Melodics™ lessons for V-Drums players
• USB-C multi-channel audio and MIDI connectivity for seamless integration with DAWs and software-based instruments
• Bluetooth® audio for streaming music and backing tracks from a mobile device
• Audio recording and song playback via SD media

Specification	Details
Drum Kits	200 (Preset: More than 70)
Instruments	More than 1,000
Effect Types	Layer Transient (per layer), Layer EQ (per layer), Pad EQ (per pad – head/rim), Pad Compressor (per pad), Overhead Mic Simulator, Room/Reverb/Kit Resonance
Bus Effects	4 systems (2 usable simultaneously per system, sidechain), 94 types
Master Effects	Bus Reverb, Master Compressor, Master Equalizer
User Sample Import	Max 500 samples (includes factory preloaded)
Sample Length	24 min mono / 12 min stereo
Supported Sample Formats	WAV (44.1 kHz, 16/24-bit)
Song Player	SD Card (WAV, MP3)
Recorder	Realtime recording
Max Note Storage	Approx. 40,000 notes
Export Formats	WAV (44.1 kHz, 16-bit), SMF
Max Recording Length	60 minutes (temporary recording: 1 min)
Display	4.3″ Graphic Colour LCD
External Memory	SD Card (SDHC supported)
Trigger Inputs	DB-25 (Kick, Snare, Toms, Hi-hat, Crash, Ride, etc.), 2 x TRS (Crash 2, Aux/Tom 4), 1 x Digital Trigger (USB-A)

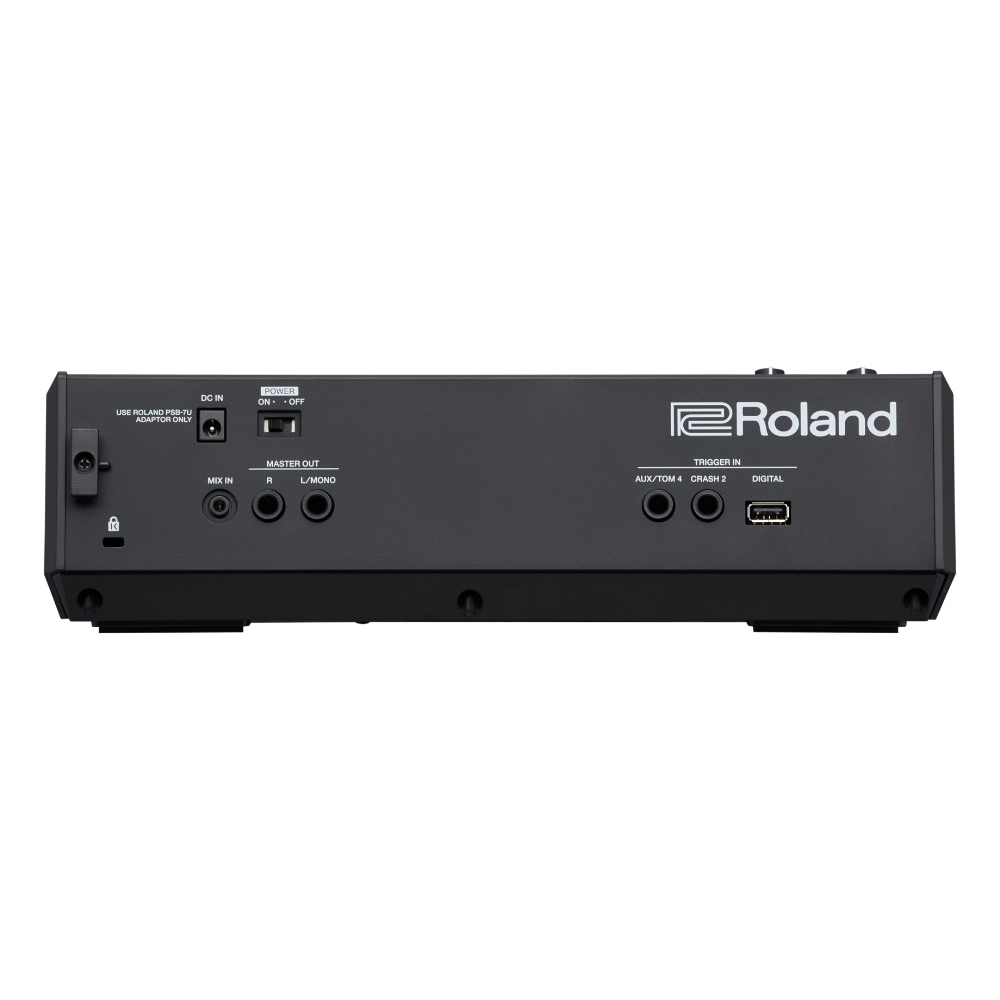

Audio Outputs	Master Out (L/Mono, R – 1/4″), Phones (stereo mini), Mix In (stereo mini)
MIDI	MIDI Out

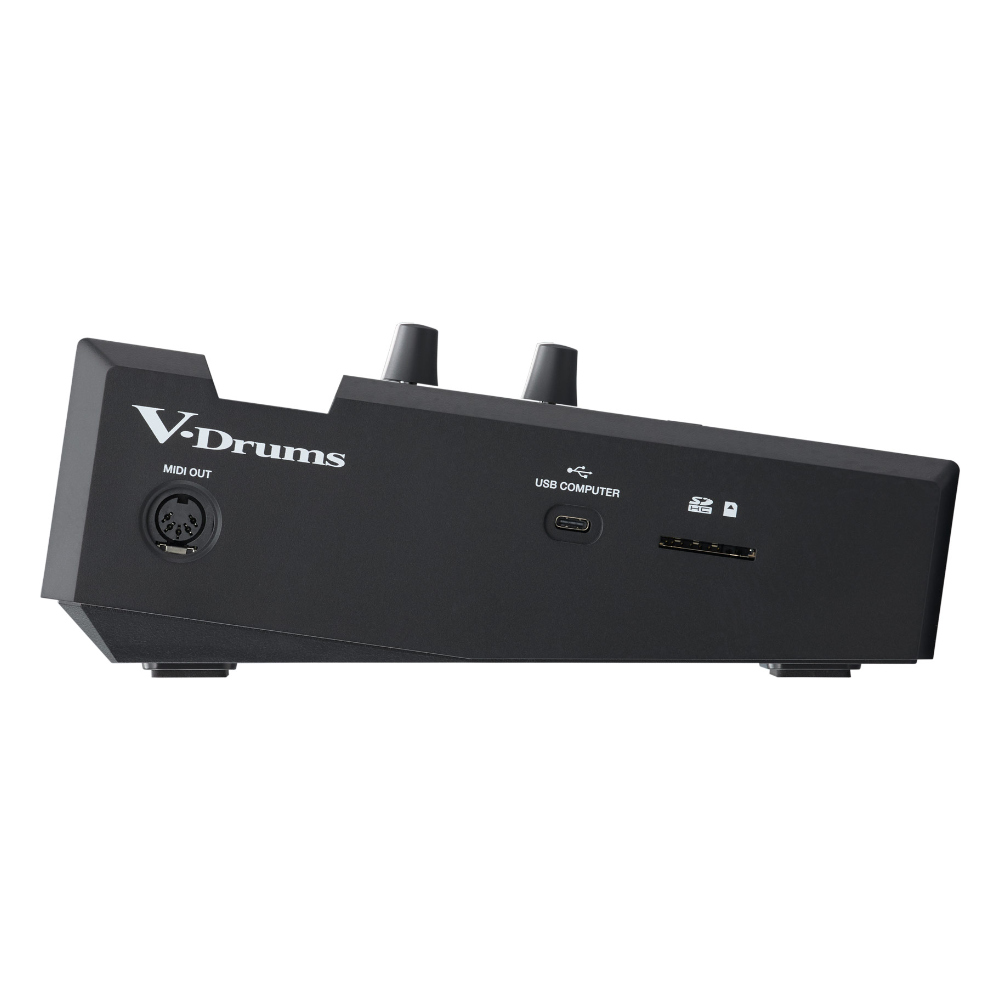

USB	USB-C (Audio & MIDI, class compliant / Roland driver)
USB Audio (Vendor Mode)	44.1 kHz (native), 96/48 kHz (SRC), Record: 30 ch, Playback: 32 ch
USB Audio (Generic Mode)	44.1 kHz, Record: 2 ch, Playback: 2 ch
Power Supply	AC Adaptor (PSB-7U)
Current Draw	1,100 mA
Power Consumption (Off)	0.24 W
Included Accessories	Quick Start Guide, Roland Cloud Connect Guide, AC adaptor, connection cable, mounting plate set, safety leaflet
Optional Accessories	Pads (PD/PDX/PDQ), Cymbals (CY/CYQ), Kick (KD/KDQ/KT), Hi-Hat (VH/FD), Triggers (RT), Monitor (PM), Accessories (DAP-3X), Mat (TDM), Noise Eater (NE)
Dimensions	316 mm (W) × 246 mm (D) × 97 mm (H)
Weight	2.2 kg (4 lbs 14 oz)
