Boss GT-1B Bass Effects Processor

Premium Bass Tone in an Ultra-Compact Package

The GT-1B gives bass players a massive range of pro tone-shaping power in a small and robust package. Backed by BOSS’s premium sound engine, you have full access to a huge selection of bass-optimised amps and effects for stage and studio playing. The streamlined interface lets you dial in sounds fast, while the onboard control switch and expression pedal enable you to adjust multiple effects in real time. And by connecting to BOSS TONE CENTRAL, you can download new patches, editing software, and more. Compact, rugged, and battery powered, the GT-1B is the ultimate mobile tone companion for every bassist.

Specifications

Sampling Frequency

44.1 kHz

AD Conversion

24 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion

24 bits

Effects

90 types

Patches

99 (User) + 99 (Preset)

Phrase Loop

32 sec.

Nominal Input Level

INPUT: -10 dBu, AUX IN: -20 dBu

Maximum Input Level

INPUT: +7 dBu, AUX IN: 0 dBu

Input Impedance

INPUT: 1 M ohm, AUX IN: 27 k ohms

Nominal Output Level

OUTPUT (L/MONO, R): -10 dBu, PHONES: -10 dBu

Output Impedance

OUTPUT (L/MONO, R): 1 k ohm, PHONES: 44 ohms

Recommended Load Impedance

OUTPUT (L/MONO, R): 10 k ohms or greater, PHONES: 44 ohms or greater

Controls

DOWN switch, UP switch CTL1 switch
EASY SELECT button, EASY EDIT button, FX1/LIMITER button, OD/DS button, PREAMP button, FX2/MOD button, DELAY button, REVERB button, MEMORY EDIT button, EXIT button, ENTER button, MENU button
1 knob, 2 knob, 3 knob
Expression pedal

Display

Graphic LCD (132 x 32 dots, backlit LCD)

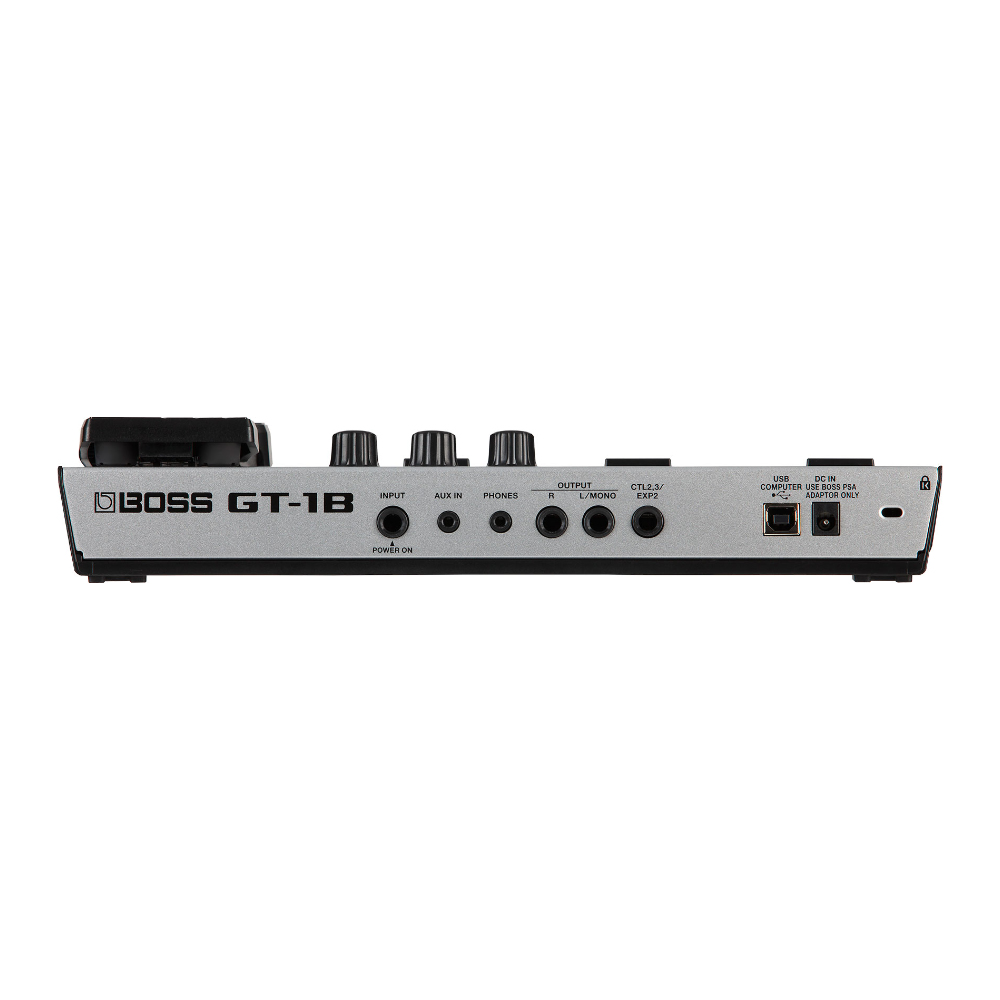

Connectors

INPUT jack, OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
CTL2, 3/EXP2 jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
PHONES jack: Stereo miniature phone type
USB COMPUTER port: USB type B
DC IN jack

Power Supply

Alkaline battery (AA, LR6) x 4, AC adaptor (sold separately)

Current Draw

200 mA

Expected battery life under continuous use

Alkaline: Approx. 7 hours
* These figures will vary depending on the actual conditions of use.

Accessories

Owner’s manual
Leaflet “USING THE UNIT SAFELY”
Alkaline battery (AA, LR6) x 4

Options (sold separately)

AC adaptor: PSA series
Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression Pedal: FV-500L, FV-500H, EV-30, Roland EV-5
Carrying Case: CB-BM-S

Size and Weight

Width

305 mm
12-1/16 inches

Depth

152 mm
6 inches

Height

56 mm
2-1/4 inches

Maximum height

74 mm
2-15/16 inches

Weight (including battery)

1.3 kg
2 lbs 14 oz
