TC Electronic V550 Ampworx Preamp & Cab Sim

Categories:Amp & Cab Sims
>
Effects

Pre-order available

$279.00 incl GST

Pre-order available

Payment Options: Master card, Visa, American Express and PayPal logo

TC ELECTRONIC V550 PRE AMP
Twin-Channel Guitar Preamp Faithfully Recreates the Sound of Legendary 5150 High Gain Tube Amp in a Pedal with Independent Channel Controls, Pre/Post Boost, Optional Cab Sim and Dedicated Outputs for DI and Headphones.

FEATURES

  • Guitar preamp pedal faithfully recreates the tone, touch and feel of the legendary MK1 Script Logo 5150 tube amp from 1992
  • Two channels with independent gain, volume and EQ controls for high octane rock and metal tones
  • Green channel (Rhythm + Crunch) ranges from pristine cleans through to hard rock crunch
  • Red channel (Lead) delivers huge levels of gain for heavy rock, classic shred and brutal metal tones
  • Integrated booster activates 5 dB boost at the kick of a footswitch with Pre/Post option on the back panel
  • Pre boost dialled in to drive the amp model harder and add a distinct mid hump like a classic overdrive pedal
  • Dedicated DI output, equipped with official Celestion 4×12 G12M Heritage cab sim IR, turns your pedalboard into a gig-ready rig direct to PA system or audio interface for recording
  • Dedicated headphone output, equipped with official Celestion 4×12 G12M Heritage cab sim IR, for huge tube amp tones and practice sessions that won’t disturb your neighbours
  • Master presence, set it and forget it, control on the rear panel to tailor your preamp and compensate for darker or brighter rigs and rooms
  • Optional bypass or always on channel change footswitch modes
  • Groundbreaking TC AMPWORX modelling technology provides low latency, huge dynamic range and feels like the real deal
  • Perfect pedalboard-friendly pedal platform takes drive pedals like a champ

Introducing the V550 preamp pedal that embodies a charismatic sonic profile reminiscent of the original tapping guitar god: Eddie van Halen.

The foundation of the V550 is rooted in a true modern amp classic from the 90s, and we went ‘that extra mile’ over and over again in our quest to model the essence of this amp. We were committed to reaching perfection, ensuring that every aspect of the sound, look, and feel was flawlessly executed before presenting you with this high-gain monster of a pedal.

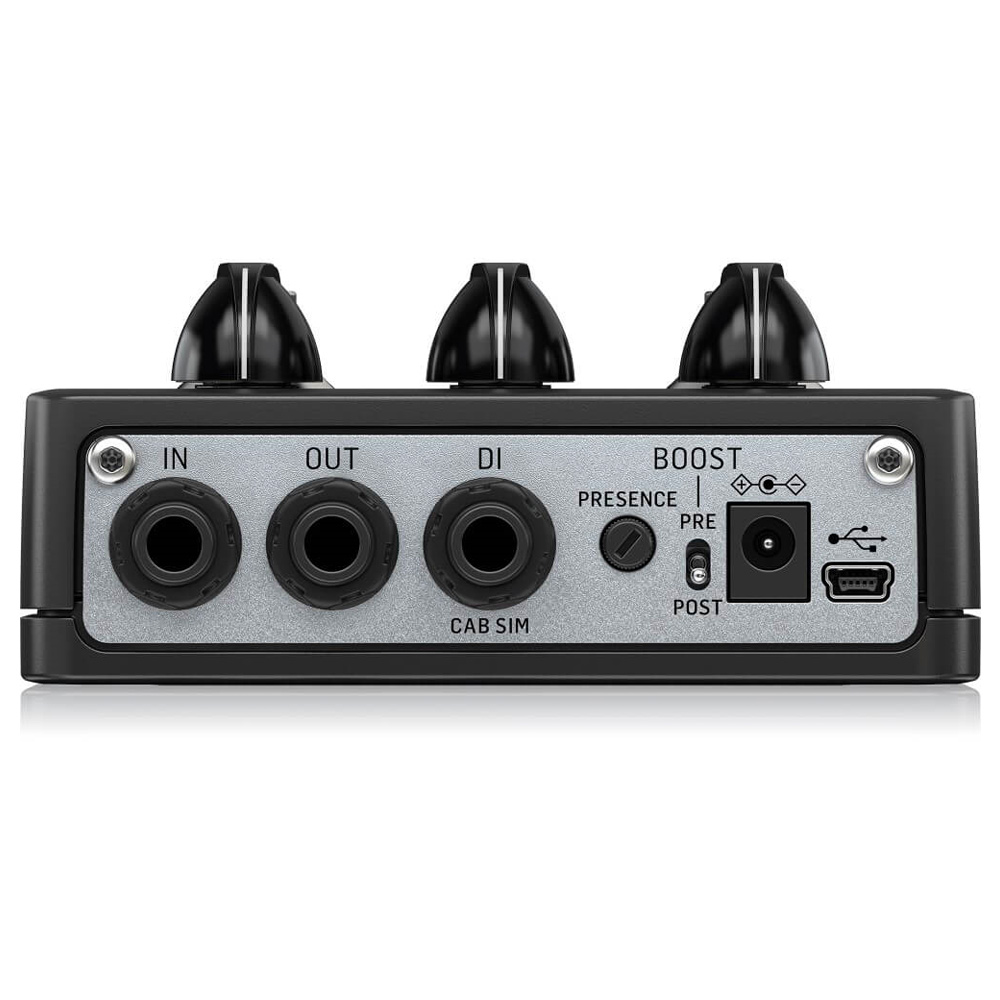

Connectors

Input 1 x ¼” TS, unbalanced
Input impedance >1 MΩ
Output 1 x ¼” TRS, balanced with ground sensing *
Direct out (cab sim) 1 x ¼” TRS, balanced with ground sensing *
Output impedance 1 kΩ
Headphones 1 x 1/8″ TRS, stereo
Headphones impedance range >32 Ω
USB port Mini-B USB connector

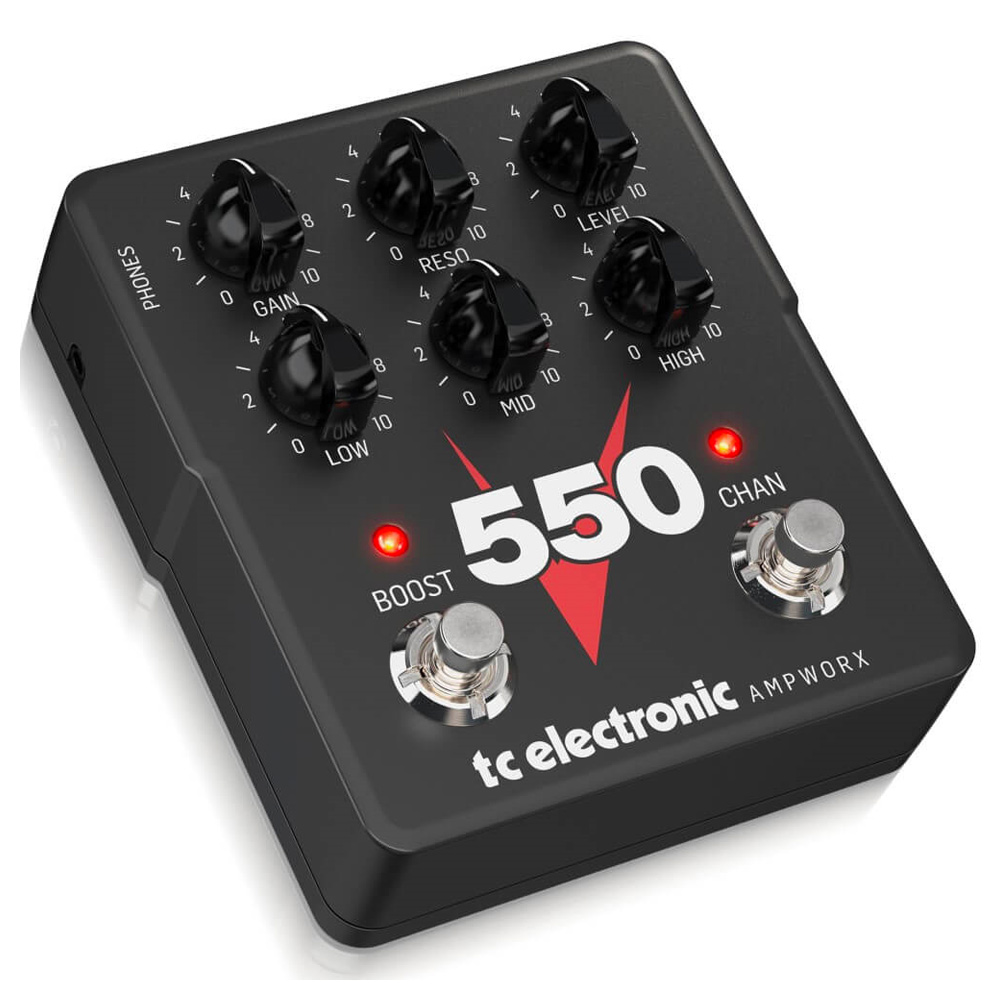

Controls

Front panel GAIN, RESO, LEVEL, LOW, MID, HIGH
Top panel PRESENCE, BOOST switch (PRE / POST)
Footswitches BOOST, CHAN (bypass)

System

Speaker and cab emulation impulse response Celestion G12M Heritage, 4 x 12″ closed cabinet
Bypass Buffered bypass

This product is covered by a 3-year manufacturer warranty (details can be found at musictribe.com).

Although we are not authorised to determine if any repair is covered under warranty, if the item was purchased through World of Music, then we are often the best people to facilitate the claim for you and will do so as timely as possible. Warranty does not apply to cosmetic damage or faults that are a result of user neglect. Although your mate is really handy with a soldering iron, any product modification or home repair will also result in a void warranty.

Quite often, something perceived as a fault is as simple as a faulty cable or power issue so we always suggest checking over Frequently Asked Questions on the manufacturer website first. It can be a helpful approach to getting to the bottom of a problem and save you a lot of time in getting your gear back up and running!

This item ships via courier; fully insured for your peace of mind. Orders require a signature on delivery and we suggest using an address where someone will be present for the speediest delivery time. For delivery attempts with no one present to sign, your order will be taken to the courier depot and a card will be left for you to organise redelivery.



Product Description

TC ELECTRONIC V550 PRE AMP
Twin-Channel Guitar Preamp Faithfully Recreates the Sound of Legendary 5150 High Gain Tube Amp in a Pedal with Independent Channel Controls, Pre/Post Boost, Optional Cab Sim and Dedicated Outputs for DI and Headphones.

FEATURES

  • Guitar preamp pedal faithfully recreates the tone, touch and feel of the legendary MK1 Script Logo 5150 tube amp from 1992
  • Two channels with independent gain, volume and EQ controls for high octane rock and metal tones
  • Green channel (Rhythm + Crunch) ranges from pristine cleans through to hard rock crunch
  • Red channel (Lead) delivers huge levels of gain for heavy rock, classic shred and brutal metal tones
  • Integrated booster activates 5 dB boost at the kick of a footswitch with Pre/Post option on the back panel
  • Pre boost dialled in to drive the amp model harder and add a distinct mid hump like a classic overdrive pedal
  • Dedicated DI output, equipped with official Celestion 4x12 G12M Heritage cab sim IR, turns your pedalboard into a gig-ready rig direct to PA system or audio interface for recording
  • Dedicated headphone output, equipped with official Celestion 4x12 G12M Heritage cab sim IR, for huge tube amp tones and practice sessions that won’t disturb your neighbours
  • Master presence, set it and forget it, control on the rear panel to tailor your preamp and compensate for darker or brighter rigs and rooms
  • Optional bypass or always on channel change footswitch modes
  • Groundbreaking TC AMPWORX modelling technology provides low latency, huge dynamic range and feels like the real deal
  • Perfect pedalboard-friendly pedal platform takes drive pedals like a champ

Introducing the V550 preamp pedal that embodies a charismatic sonic profile reminiscent of the original tapping guitar god: Eddie van Halen.

The foundation of the V550 is rooted in a true modern amp classic from the 90s, and we went ‘that extra mile’ over and over again in our quest to model the essence of this amp. We were committed to reaching perfection, ensuring that every aspect of the sound, look, and feel was flawlessly executed before presenting you with this high-gain monster of a pedal.

Specifications

Connectors

Input 1 x ¼” TS, unbalanced
Input impedance >1 MΩ
Output 1 x ¼” TRS, balanced with ground sensing *
Direct out (cab sim) 1 x ¼” TRS, balanced with ground sensing *
Output impedance 1 kΩ
Headphones 1 x 1/8″ TRS, stereo
Headphones impedance range >32 Ω
USB port Mini-B USB connector

Controls

Front panel GAIN, RESO, LEVEL, LOW, MID, HIGH
Top panel PRESENCE, BOOST switch (PRE / POST)
Footswitches BOOST, CHAN (bypass)

System

Speaker and cab emulation impulse response Celestion G12M Heritage, 4 x 12″ closed cabinet
Bypass Buffered bypass
Warranty

This product is covered by a 3-year manufacturer warranty (details can be found at musictribe.com).

Although we are not authorised to determine if any repair is covered under warranty, if the item was purchased through World of Music, then we are often the best people to facilitate the claim for you and will do so as timely as possible. Warranty does not apply to cosmetic damage or faults that are a result of user neglect. Although your mate is really handy with a soldering iron, any product modification or home repair will also result in a void warranty.

Quite often, something perceived as a fault is as simple as a faulty cable or power issue so we always suggest checking over Frequently Asked Questions on the manufacturer website first. It can be a helpful approach to getting to the bottom of a problem and save you a lot of time in getting your gear back up and running!

Shipping

This item ships via courier; fully insured for your peace of mind. Orders require a signature on delivery and we suggest using an address where someone will be present for the speediest delivery time. For delivery attempts with no one present to sign, your order will be taken to the courier depot and a card will be left for you to organise redelivery.
