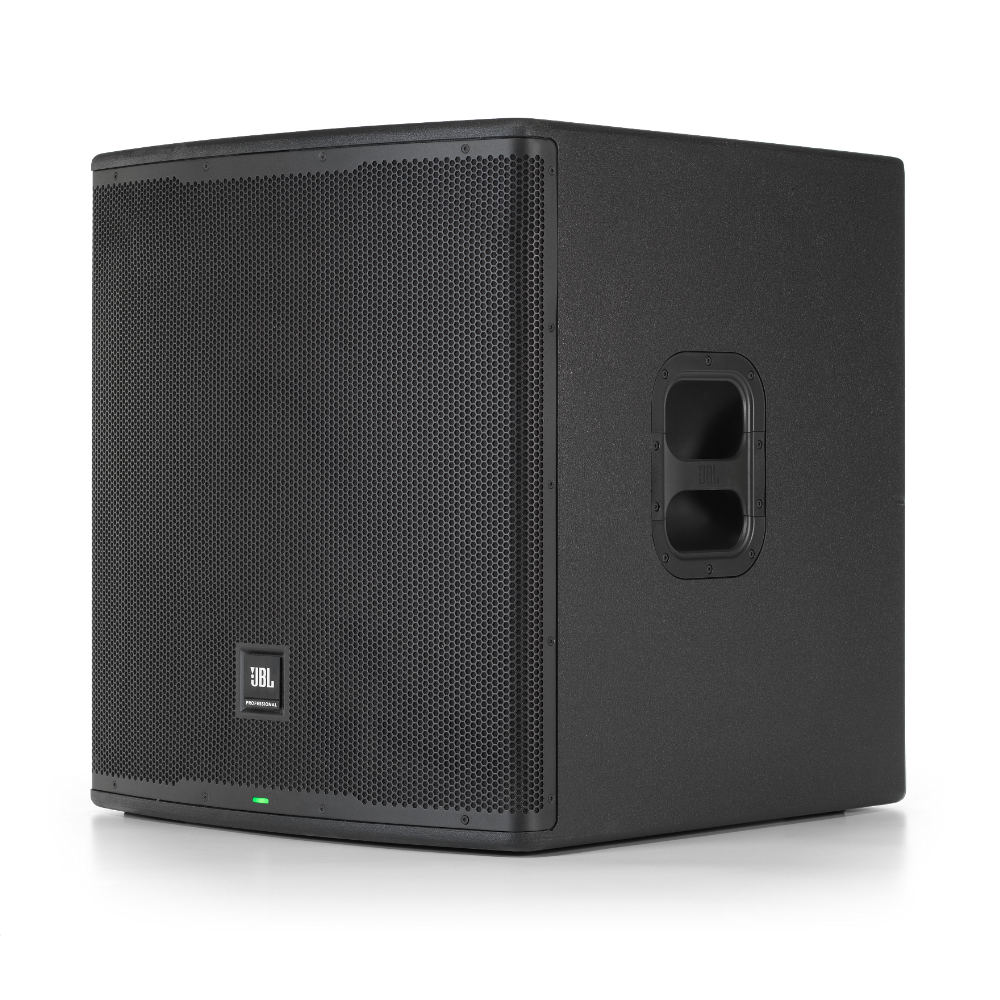

JBL EON718S Powered 18″ Inch Subwoofer
Pre-order available
$2,299.00 incl GST
More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application.
Pre-order available
Next Generation Innovation
Features
- Custom-engineered 18-inch woofer
- Power: 1,500W peak / 750W RMS
- Frequency response: 31–150 Hz (-10 dB); 40–120 Hz (-3 dB)
- Max SPL: 131 dB
- Audio I/Os: 2 XLR Combo, 2 XLR loop-outs
- Advanced dbx DSP: Parametric EQ, polarity inversion, speaker delay
- Built-in 2-channel digital mixer
- Parametric EQ, polarity inversion and speaker delay
- Color backlit LCD screen provides easy access to functions
- Durable birch plywood cabinet with patented DuraFlex finish and metal grille
- Universal JBL Pro Connect app control using powerful BLE technology
- Ergonomic handles simplify transport
- Built-in threaded pole mount expands system configuration options
- Stackable cabinets simplify cardioid configurations and equipment storage
- Dimensions: 26.3 x 24 x 25.1 in (667 x 609 x 637mm) (HxWxD)
- Weight: 81.5 pounds (37 kg)
- Shipping dimensions: 29.6 x 28.42 x 29.3 x (744 x 722 x 752 mm) (HxWxD)
- Shipping weight: 94.4 pounds (42.8 kg)
Acoustics and Amplifier
JBL’s advanced waveguide and transducer technologies, coupled with highly efficient amplification, ensure uniform coverage across the entire listening area, even when you push the system to the limit.
The EON710’s woofer is redesigned for lower impedance and higher efficiency, an improved horn delivers a smooth off-axis beamwidth and JBL’s powerful 2414H compression driver features a premium neodymium magnet for balanced response in a lightweight footprint. The speaker is powered by 1,300 watts of ultra-efficient, discrete Class D amplification, for clean, clear sound. It all adds up to superior coverage, consistency and intelligibility at any volume.
Advanced DSP and Control
The EON710’s advanced DSP package provides comprehensive control over EQ, limiters, delay, dbx Automatic Feedback Suppression, ducking and other functions. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App. Built-in Bluetooth 5.0 audio streaming and control take advantage of the newest protocol’s security features, low latency, broad range and improved audio fidelity.
System Versatility
EON710 loudspeakers can be used as main PA speakers or floor monitors. Top and rear suspension points enable flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount.
Indexed feet molded into enclosures, enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport. (Companion EON718S subwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations.)
Rugged and Reliable
All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds, every time it’s turned on.
The EON710 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.
Like every JBL Professional product, the EON710 undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.
| System Type | 18IN Powered Subwoofer |
| Woofer Model | 718G |
| Woofer Size | 18″ |
| Woofer Magnet | Ferrite |
| Woofer Voice Coil | 3″ |
| Transducer Impedence | 4 ohm rated |
| Max SPL | 131dB @1m/2Pi |
| Freq Range -10 | 31Hz – 150Hz |
| Freq Range -3 | 40Hz -120Hz |
| Hor Dispersion | Omni |
| Vert Dispersion | Omni |
| Crossover Frequency | 80, 100, 120Hz selectable |
| Power Rating | 1500W Peak Power 1500W Peak / 750W RMS / 170W Cont. |
| AC power input | 100V-120V or 220V-240V |
| Cooling | Passive |
| LED indicators | 1 Power LED, 1 System Limit, 1 Front LED |
| Input Impedance | 50k/100k un-balanced/balanced |
| Input Gain | -∞to +36db |

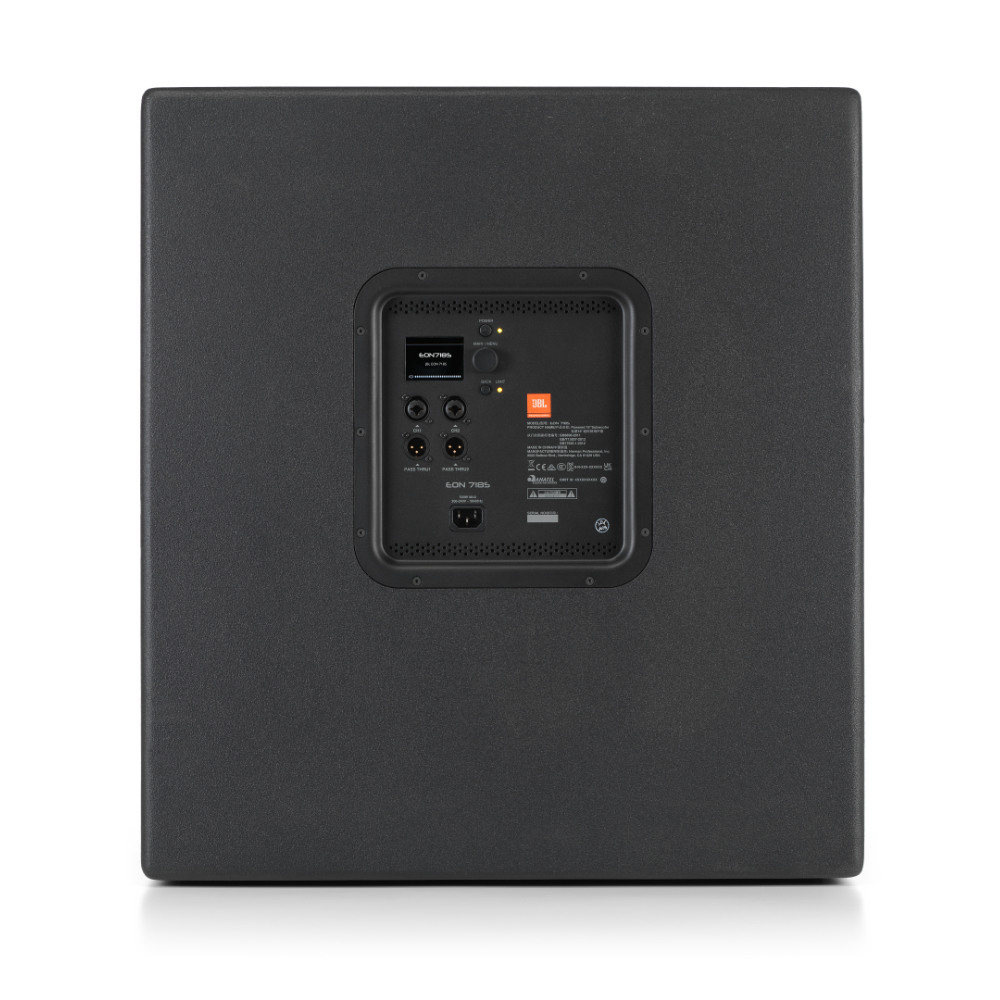

| I/O | 2 XLR Combo 2 XLR M Thru |
| Cabinet | 18mm Duraflex-coated Birch Plywood |
| Grille | 16GA perforated steel with acoustically transparent black cloth backing |
| Suspension / Mounting | 1 M20 Threaded Polecup |
| Handles | 2 |
| Net Weight | 35.5kg (78.26 in.) |
| Gross Weight | 42.5kg (93.70 in.) |
| Product Dims | HxWxL 674x609x637mm (26.54×23.98×25.08 in.) |
| Shipping Dims | HxWxL 722x743x713mm (28.43×29.25×28.07 in.) |
