M-Audio M-Track Duo USB Audio Interface
Pre-order available
$109.00 incl GST
Pre-order available

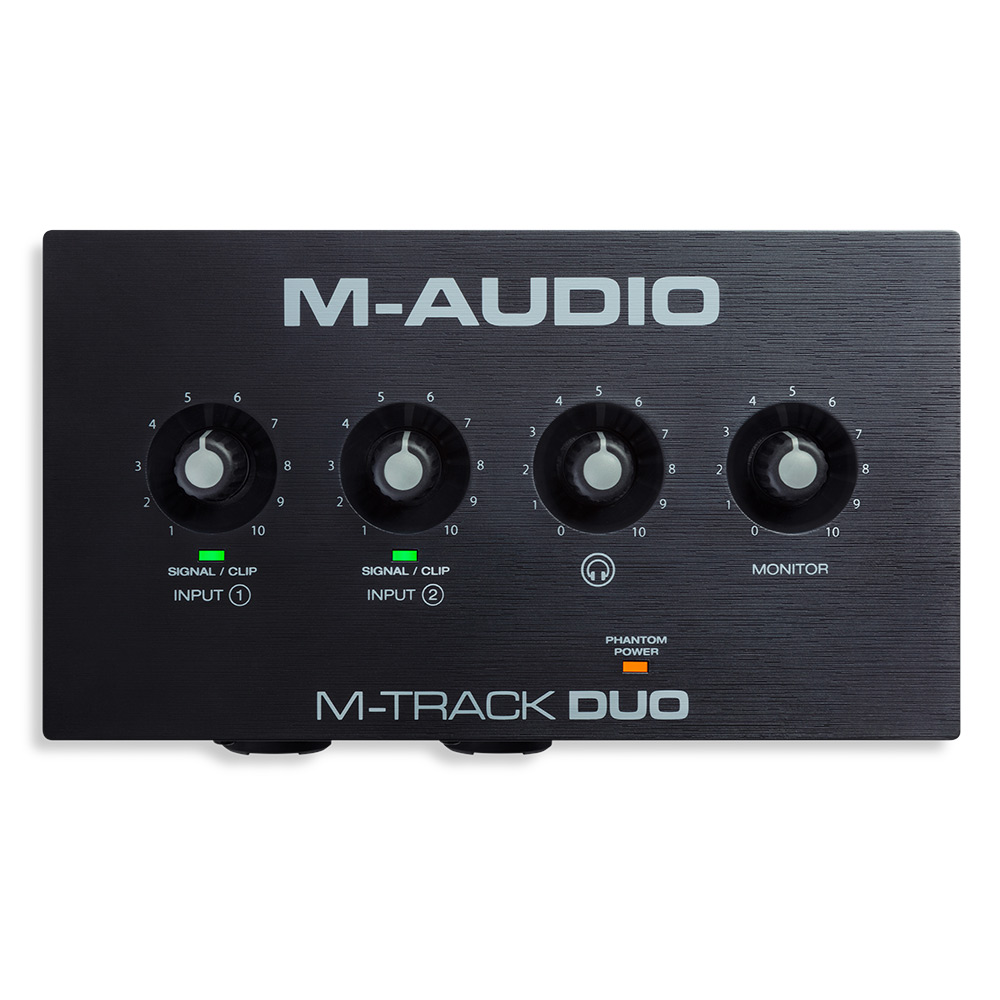

M-AUDIO M-TRACK DUO
48-KHz, 2-channel USB Audio Interface with 2 Combo Inputs with Crystal Preamps, and Phantom Power
Crystal Clear Audio in a Compact Design
The M-Track Duo is the best, most portable recording interface in its class. It delivers 48 kHz audio resolution in a compact and easy to use format that is ideal for creating music on any Mac, PC or iOS device. This versatile interface works great for recording any type of sound source and features two Combo Crystal Preamps with phantom power, making it compatible with any microphone. Plus, there is a dedicated switch to choose either a line level or instrument level input, perfect for connecting digital pianos, drum machines or any other stereo ¼” inch line level device, as well as the best possible signal for DI guitar or bass. M-track Duo is completely powered by USB, which makes it portable and perfect for anyone on-the-go. Throw it into your bag, grab a laptop, and create your next podcast, song, or mix, anywhere you want!
Direct Monitoring & Headphone Connection
M-Track Duo offers zero-latency monitoring of the mic, line or instrument input signal through both the main stereo 1/4/’ outputs and stereo1/4” headphone output. The USB/Direct switch adjusts the balance between the direct inputs and the playback from your computer software. This makes it easy to record new parts or add parts to an existing composition.
Start Recording Immediately
The M-Track Duo comes with a complete software package that has everything to get you started right out of the box. Included is a great digital audio workstation (DAW)-MPC Beats. This DAW makes it easy and fun to create professional sounding podcasts, music, or pro sounding beat productions on any Mac or PC.
80 Effect Plugins provided by AIR
But that’s not all. Included are some extra goodies to help out any podcaster, guitarist, or producer. First on the list are 80 effect plugins provided by AIR. This exclusive and diverse collection delivers everything you need for creative production, mixing and mastering, including reverbs, equalizers, delays, filters and so much more.
World-Class Virtual Instruments – TubeSynth, Electric, and Bassline
The AIR TubeSynth plugin emulates the sound of vintage analog polyphonic synthesizers. Dive into a collection of warm pads, brass synths, and so much more in this massive collection of synthesizer presets.
AIR Electric plugin is your total electric piano collection on MPC. Choose from a wide collection of keyboards like Rhodes, Wurlitzers, FM keyboards, and more. Dedicated control sections provide deep virtual control over keyboard pickups, envelope, bell and noise settings, and much more.
The AIR Bassline plugin emulates the sound of classic monophonic synthesizers. Create your own unique synth patches with the integrated AIR effects sections
A New Standard For Guitar Amplifier Modelling Software
ReValver includes ValveKing & Custom Lite Amp Modules, 3 x cabs, 3 x mics (with multiple selectable positions), and 3x effects.
Crystal Preamps, Pristine A/D Converters and Premium Components
Our engineers designed Crystal Preamps to provide you with a transparent, low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The M-Track Duo incorporates pristine A/D converters for digital audio with explosive dynamic range that captures every nuance and subtlety of the performance.
Key Features
- 2-Channel USB recording interface for Mac and PC

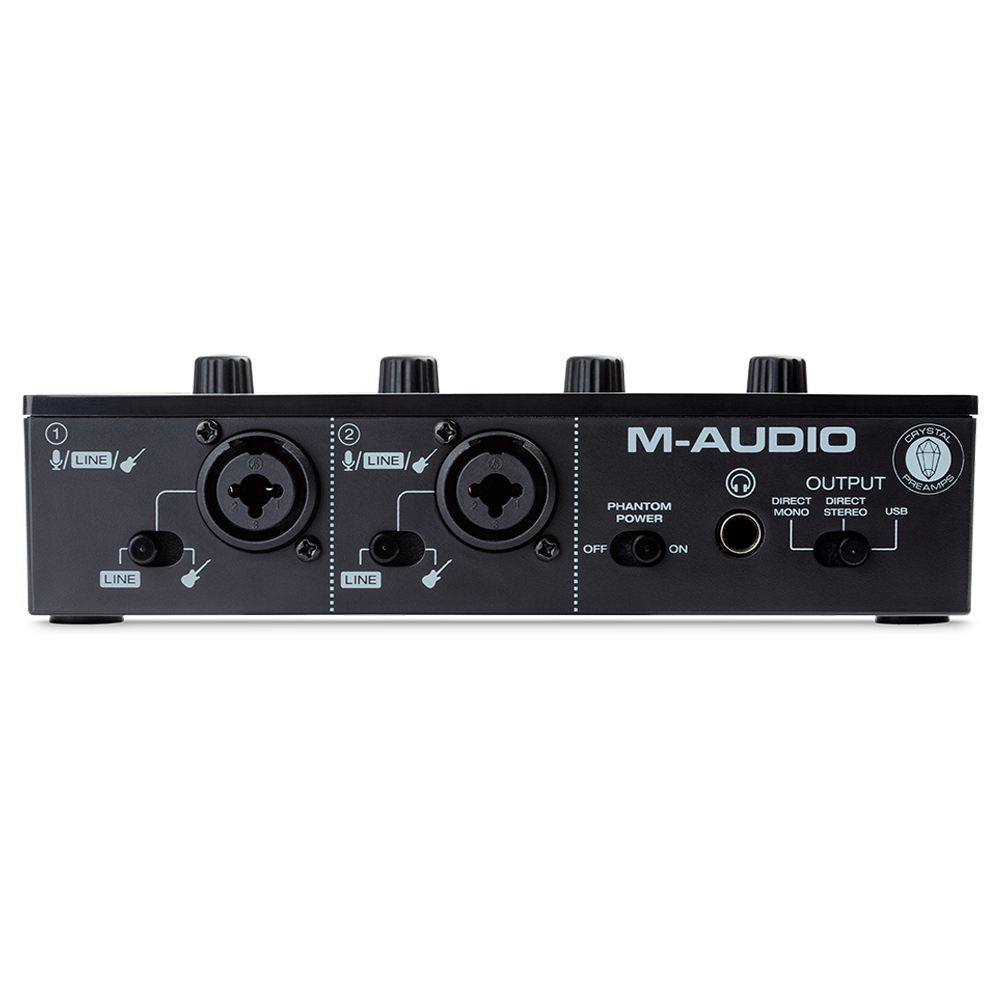

- (2) Combo inputs with Crystal Preamps amazing audio quality
- Dedicated switches to enable any microphone, instrument, or line level device
- +48V phantom power for connecting studio condenser microphones

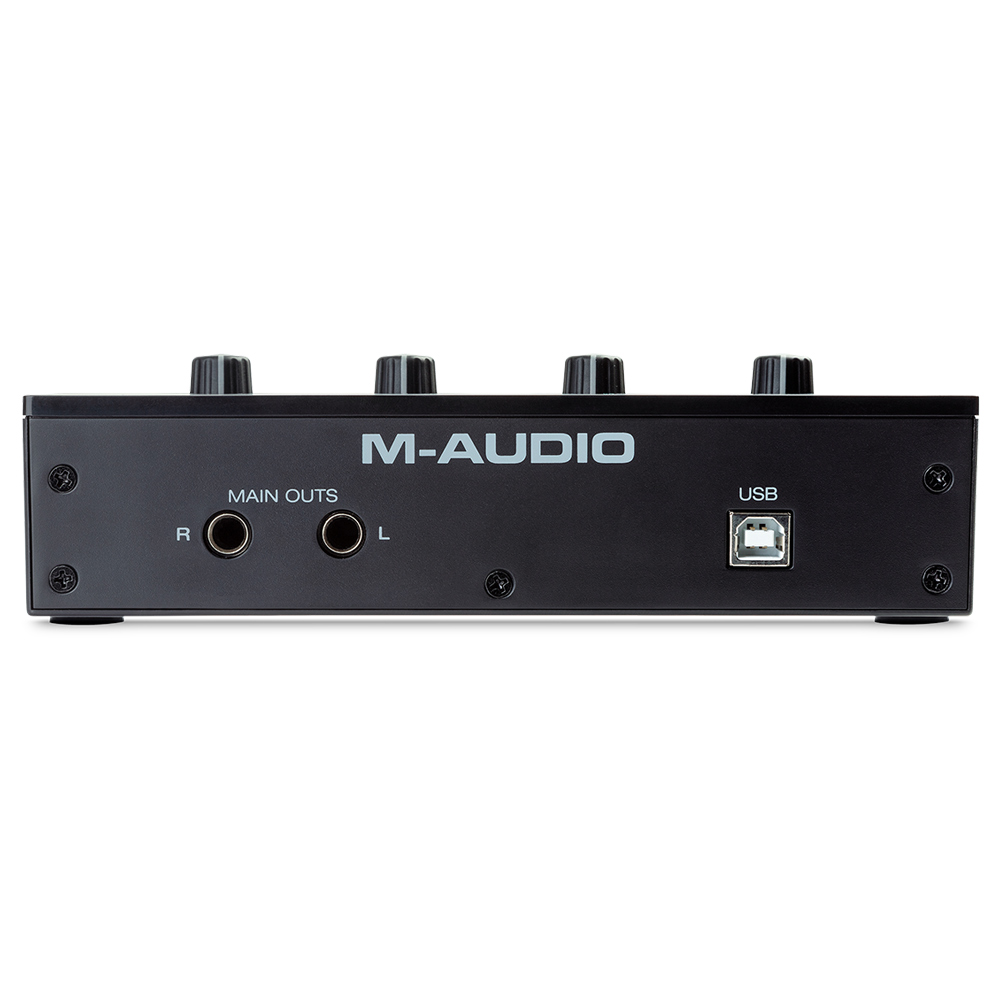

- Stereo 1/4” outs; 1/4” headphone out with independent level controls
- USB/Direct Mono/Direct Stereo switch for monitoring mic, line or instrument inputs in stereo or mono
- Software bundle, including: MPC Beats, AIR Music Tech Electric, Bassline, and TubeSynth, Revalver guitar amp plugin and 80 AIR plugin effects
| Mic Input (balanced XLR) | |
| Frequency Response | 20 Hz – 20 kHz (+0.1 dB) |
| Signal-to-Noise Ratio | 109 dB (A-weighted) |
| THD+N | 0.003% (min. gain, 0 dBu out, A-weighted) |
| Preamp EIN | -128 dBu (max. gain, 40 Ω source, A-weighted) |
| Gain Range | Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB |
| Line Input (balanced 1/4″ [6.35 mm] TRS) | |
| Frequency Response | 20 Hz – 20 kHz (+0.1 dB) |
| Sensitivity | -43 dBu |
| THD | 0.002% (min. gain, 0 dBu out, A-weighted) |
| Gain Range | Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB |
| Instrument Input (unbalanced 1/4″ [6.35 mm] TS) | |
| Frequency Response | 20 Hz – 20 kHz (+0.1 dB) |
| THD+N | 0.005% (min. gain, 0 dBu out, A-weighted) |
| Input Impedance | 1 MΩ |
| Gain Range | Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB |
| Main Outputs, L and R (impedance-balanced 1/4″ [6.35 mm] TRS) | |
| Frequency Response | 20 Hz – 20 kHz (+0.1 dB) |
| Signal-to-Noise Ratio | 109 dB (A-weighted) |
| THD | 0.002% (0 dBu out, A-weighted) |
| Max Output Level | +4 dBu |
| Headphone Output (1/4” [6.35 mm] TRS) | |
| Power | 60 mW/Ch, 32 Ω |
| Frequency Response | 20 Hz – 20 kHz (+0.5 dB) |
| THD+N | 0.02% (A-weighted) |
| Signal-to-Noise Ratio | 100 dB (A-weighted) |
What’s In The Box
- M-Track Duo
- USB-B–to–USB-A Cable
- Software Download Cards
- User Guide
- Safety & Warranty Manual
